Lecteur portatif de code barres de laser d'USB 1D 2D de sens de scanner tenu dans la main automatique de code barres
ContPerson : Steven Yao
Numéro de téléphone : +86-13424312532
Quel est l'app? : +8613424312532
| Quantité de commande min : | négociable | Prix : | negotiable |
|---|---|---|---|
| Détails d'emballage : | détails de emballage : le carton standard d'exportation, peut être adapté aux besoins du client. | Délai de livraison : | 7 jours de travail |
| Conditions de paiement : | T/T | Capacité d'approvisionnement : | 100 000 PCs par semaine |
| Lieu d'origine: | La Chine | Nom de marque: | Wisecard |
|---|---|---|---|
| Certification: | SGS/ROHS/CE/ISO/CE RED | Numéro de modèle: | scanner de code barres |
|
Détail Infomation |
|||
| Capteur d'imagerie: | 1280*1024 CMOS | Décodez l'exactitude: | Code 39 4mil |
|---|---|---|---|
| Compatibilité du système: | MaOS de、 du、 10 du、 8 du、 7 de WindowsXP de、 d'Android de、 de Linux | Code disponible: | 1D, 2D codes imprimant sur le papier ou film ou écran |
| Imperméable et anti-poussière: | Conforme IP54 | Tension locale: | 5V |
| Interface: | USB (commande librement), porte série | Taille de emballage (L*W*H): | 180mm*168mm*121mm |
| Mettre en évidence: | Scanner de code à barres du supermarché,Scanner de code à barres de bureau de précision,Scanner de code à barres 1d 2d |
||
Description de produit

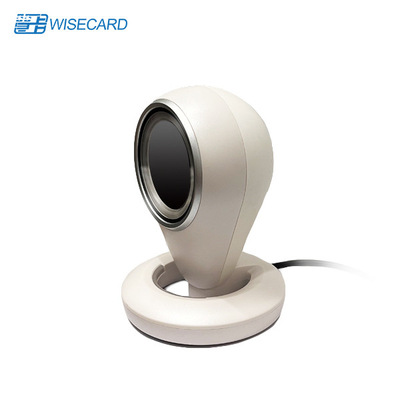

Factory High Quality Precision Desktop 1d 2d Qr Bar Code Scanners Scanning Supermarket Bar Code Scanner
Description Of Desktop Scanner
WCT-A3 is low power consumption design: from the main chip, sensor and lighting selection to circuit design, have done a special low power consumption processing, taking into account the excellent scanning performance, but also ensure the reliability of data transmission in various power supply conditions.
Feature Of Desktop Scanner
1. With 1280*1024 CMOS Imaging sensor, which can capture bigger and detailed image.
2. 1DCapacity: EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32 and etc.
3. 5mil code39: 1-15cm
4. UPC-13mil: 1-33cm
Specification Of Desktop Scanner
|
Performance Parameters |
Picture Sensor | 1280*1024 CMOS | |||||||
| Capacity | 1D | EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded | |||||||
| 2D | PDF417,MicroPDF417,MicroQR, Data Matrix,QR,Aztec | ||||||||
| Depth of Field | Tested Code | Minimum | Maximum | ||||||
| 5mil code39 | 1cm | 15cm | |||||||
| UPC-13mil | 1cm | 33cm | |||||||
| 20 mil code39 | 1cm | 40cm | |||||||
| 20 mil QR Code | 1cm | 28cm | |||||||
| System Compatibility | Linux,Android,Windows XP,7,8,10,MACOS | ||||||||
| Decode Accuracy | Code 39 4mil | ||||||||
| Code Available | 1D, 2D Codes printing on Paper or film or screen | ||||||||
| Scan Rate | 30 Fps | ||||||||
| Scan Pattern | Automatic induction continuous scan | ||||||||
| Keyboard support | American-English, French, Italian, German, Spanish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish F, Turkish Q, Greek, Finnish, Belgian (French), British-English | ||||||||
| Barcode language support | Simplified Chinese (win system) | ||||||||
| Invoice function | Support( for China market only(win system) | ||||||||
| Secondary development | Not support | ||||||||
| Barcode output editing | support adding prefix and suffixes, hidden characters | ||||||||
| Symbol Contrast | 20% | ||||||||
| Scanning Angle | Horizontal : ±70° Vertical:±60° Rotated: ±360° | ||||||||
|
Human- computer interaction |
Indicator light | Red & Blue indicator light | |||||||
| Buzzer | Start Tips,Reading code tips | ||||||||
|
Environment Parameters |
Drop | Design to withstand 1.5 M drops to concrete 3 times | |||||||
| Environmental Sealing | IP54 | ||||||||
| Working Temperature | -20-55℃ | ||||||||
| Conserve Temperature | -20-60℃ | ||||||||
| Working Humidity | 5-95% Non-Condensed | ||||||||
| Conserve Humidity | 5-95% Non-Condensed | ||||||||
| Environment Light | 0-70000LUX | ||||||||
|
Physical Parameters |
Net Weight | 372g | |||||||
| Packing Weight | 500g | ||||||||
| Data line length | 180CM(±3CM) | ||||||||
| Host Size(L*W*H) | 104.8*104.8*147mm | ||||||||
| Packing Size(L*W*H) | 180mm*168mm*121mm | ||||||||
| Interface | USB(Drive free), serial port | ||||||||
| working voltage | 5V | ||||||||
|
USB
|
Standby current | 133mA/0.665W | Serial port | Standby current | 357mA/1.785W | ||||
| Working current | 133mA/0.665w | Working current | 357mA/1.785W | ||||||
| Working current(Max) | 175mA/0.875W | Working current(Max) | 358mA/1.79W | ||||||
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
Why Choose Us
Electronic screens suitable for various scenarios. They can be used in retail stores and hotel for dynamic onsite product promotion, at Office building and Schools as a access control system, in bank and restaurant for queueing or ordering etc. We have our own hardware factory and excellent professional design team, for you to tailor to make the best quality products. Welcome to consult and customize.
We will arrange the most perfect packing for customers according to different orders and modes of transportation. Such as wooden cases, honeycomb boxes, containers, etc. All-round protection against moisture and impact, the products will be safely and quickly transported to you.
